FirePROOF

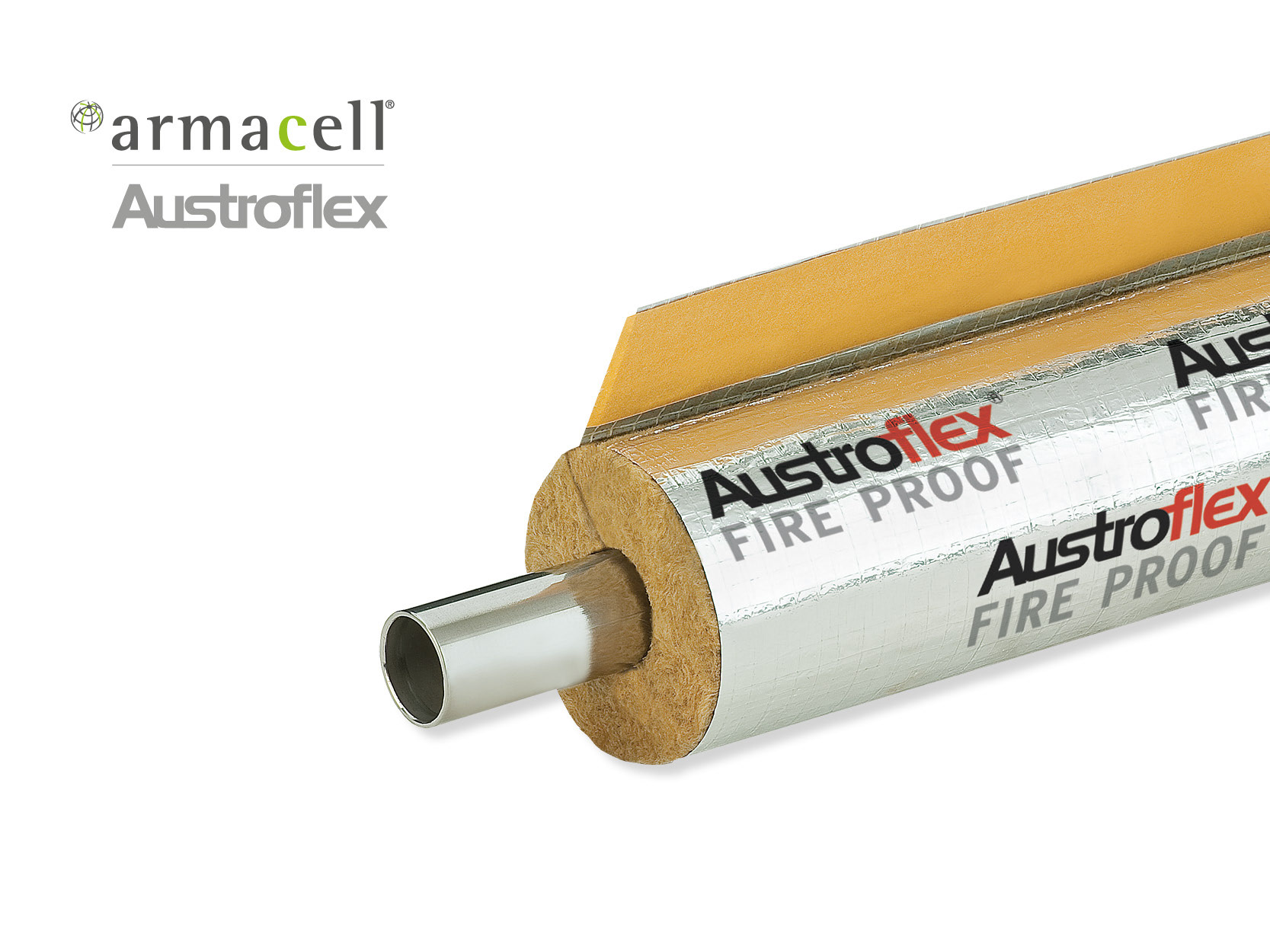

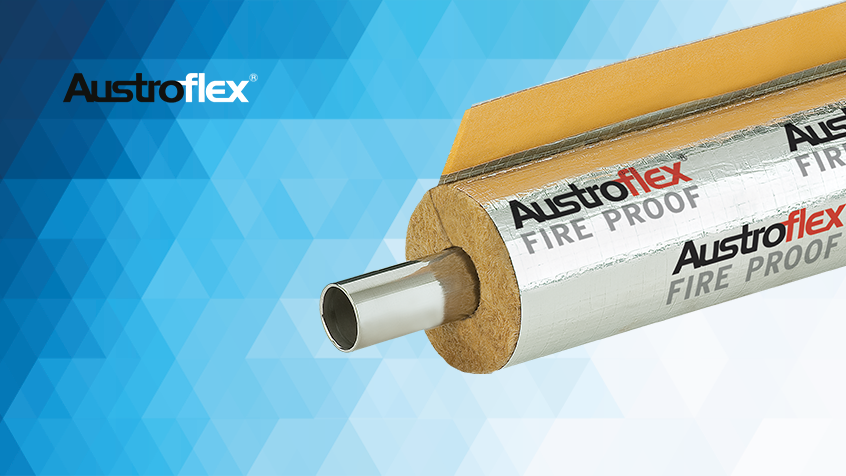

Austroflex FirePROOF is a precisely cut, non-flammable mineral wool pipe used as a pipe seal for fire protection. The shell is coated with a printed mesh reinforced aluminum foil and packed in quantities convenient for construction sites. Assembly is simple, which is why the shell has a slot on one side and a foil overlap so that the shell can be easily unfolded and assembled.
Thanks to FirePROOF, pipe penetration seals EI 30 to EI 120 for flammable, non-flammable pipes and multilayer composite pipes can now be implemented with light partition walls as well as solid walls and ceilings.
![](https://cdn.myportfolio.com/07ff582d-fd50-4fcc-a773-7400ed5d0a39/3acb076a-4748-4961-a3b0-e2ff18198cf2_rw_1200.png?h=b540946878b145be01b556562dcd2114)
APPLICATIONS
- load-bearing and non-load-bearing solid walls in accordance with DIN 1053 Part 1-4, DIN 1045, and cellular concrete in accordance with DIN 4165 or 4166
- Non-bearing, space-separating metal stud walls in accordance with DIN 4102-4 with double-sided double paneling and a valid certification
- Zero distances from flammable, non-flammable pipe systems or multilayer pipes
![](https://cdn.myportfolio.com/07ff582d-fd50-4fcc-a773-7400ed5d0a39/3deb1d83-21f2-4076-b790-1609f01079af_rw_1200.png?h=f217595bd626668f86910245872e79ef)
characteristics
_____________________________
FireFLOC
![](https://cdn.myportfolio.com/07ff582d-fd50-4fcc-a773-7400ed5d0a39/27cabb8e-f8e8-463c-ba92-e1467c5bbb27_rw_600.jpg?h=781695290f0962f4609cd776327552a3)

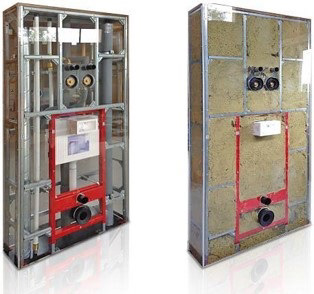

installation shaft unfilled (left) and filled with fireFLOC (right)
Austroflex FireFLOC is an innovative construction technique that meets all four requirements of modern housing construction:
- Fire protection
- Acoustic insulation
- Thermal insulation
- Scent blocking
Using special mineral insulation, a cavity-free filling of the entire installation shaft can be carried out mechanically. The minimum density of 90 kg/m3 ensures sustainable stability and maximum safety for all functions, especially preventive fire protection.
![](https://cdn.myportfolio.com/07ff582d-fd50-4fcc-a773-7400ed5d0a39/f3b69f0c-2654-4350-87be-78ce20c66b9d_rw_1200.png?h=4d5c1b62a82d5de3da7f882fc82215f9)
BENEFITS
- Clean, silent, and fast
- Reduction of construction costs up to 40%
- Improved acoustic insulation
- Improved thermal insulation without additional pipe insulation
- Elimination of odor transfers
- Prevention of fire and smoke spread
APPLICATIONS
- Permanent installations in new and existing buildings
- Residential and hotel constructions, retirement and nursing homes, student dormitories
- Installation shaft with flammable and non-flammable sewerage systems
- Cable installations with single cables and cable bundles with or without conduits
- Installation with ventilation ducts
![](https://cdn.myportfolio.com/07ff582d-fd50-4fcc-a773-7400ed5d0a39/adc625ee-fb4b-4c23-bcbb-c2778e5e805d_rw_1200.png?h=3cfd8ff7937e2de7a8f7f426e1c2def7)
characteristics
